Description

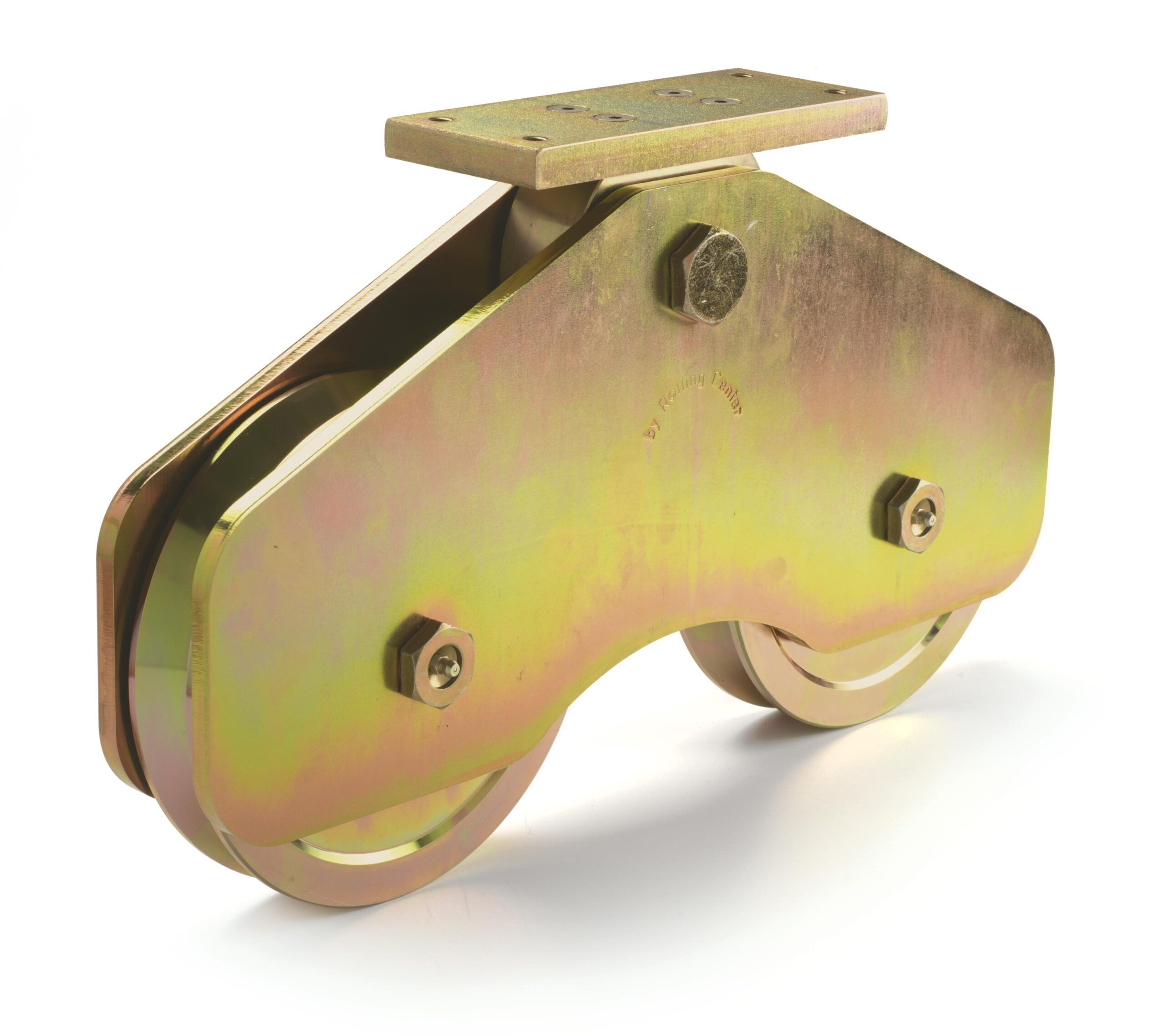

The RBI 200 V Central Rocker Wheel is a precision-engineered Italian solution designed to manage uneven loads while maintaining consistent gate travel. Featuring twin 200mm V-groove wheels mounted on a central rocker arm, this unit automatically equalises weight distribution across both wheels, reducing rail stress and extending service life.
Built for underside gate mounting, the assembly incorporates lubricating pins and high-capacity sealed bearings to ensure controlled movement under heavy loads. Its V-profile is optimised for ANGULA V-groove tracks, delivering accurate guidance, reduced vibration, and reliable alignment across long gate spans.
Manufactured for commercial and industrial use, the RBI 200 V is tested for high-cycle performance and built to withstand continuous operation in challenging site conditions.
Key Features
- Twin 200mm V-groove steel wheels
- Central rocker arm for automatic load equalisation
- Underside mounting configuration
- High-capacity sealed bearings (6205 2RS)
- Integrated lubrication points for extended service life
- Designed for ANGULA V-groove sliding gate tracks
- Rated load capacity: 1300 kg
- Cycle tested to 2 million operations
