Description

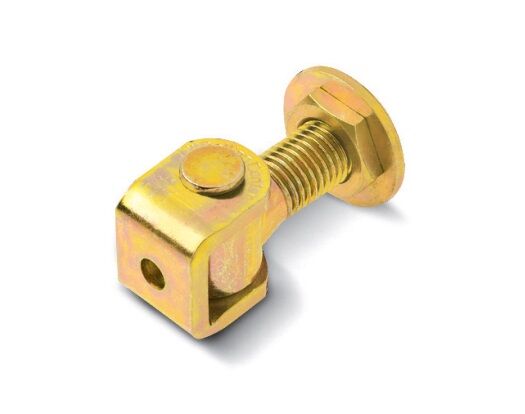

Designed for seamless welding and on-site adjustments, this hinge ensures your gates are perfectly aligned with ease, thanks to its robust M18 thread. Our adjustable weld on hinge offers a substantial weight capacity of up to 60 kgs per hinge.

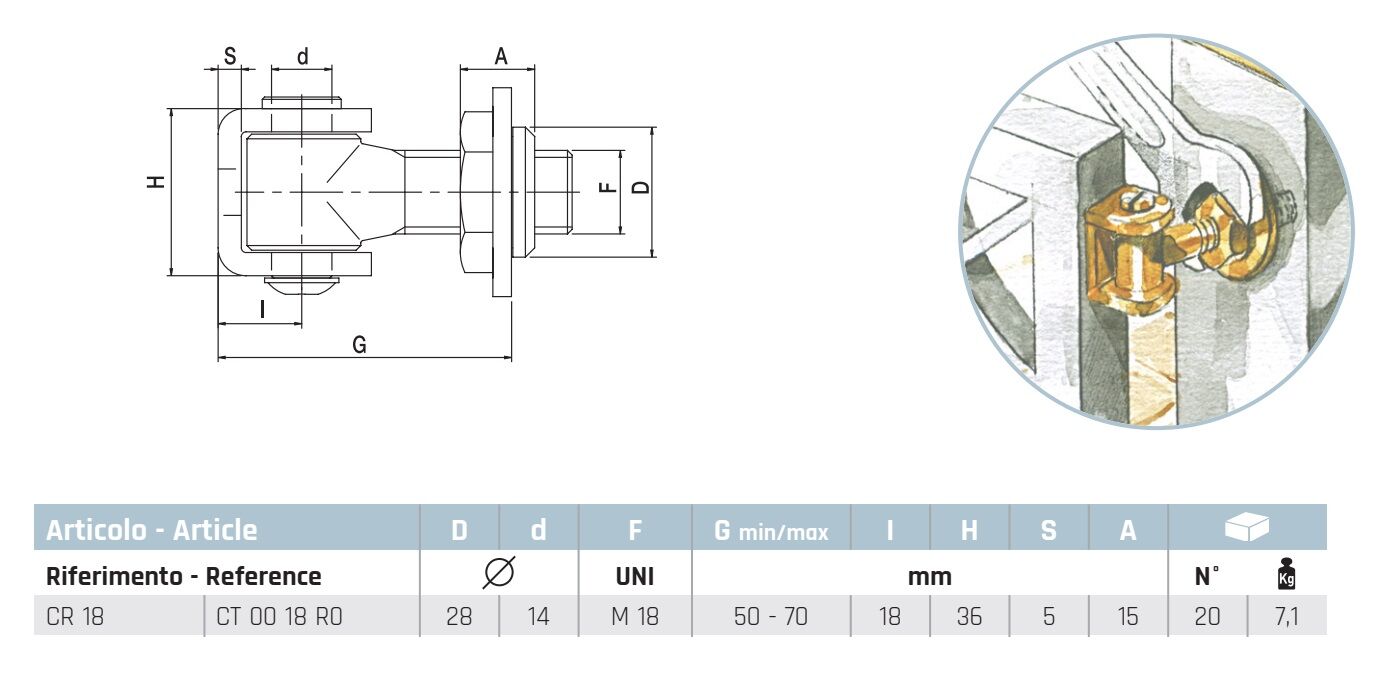

This CR 18 features a 28 mm diameter pin (D) and a 14 mm threaded nut section (d), ensuring high load capacity and stability. The integrated M18 UNI-compliant threaded adjustment system (F) allows for effortless on-site alignment, enabling the installer to fine-tune the gate height and position after welding. This is particularly beneficial during installation or over time as the gate settles.
It offers an adjustable installation length ranging between 50–70 mm (G min/max), giving installers generous flexibility during setup. The compact yet durable lower plate features an 18 mm internal plate width (I) and a 36 mm overall hinge height (H), making this hinge suitable for a wide variety of gate frames and mounting styles. The hinge plates are constructed with a 5 mm thickness (S) and 15 mm bracket width (A), ensuring a rigid weld-on foundation that maintains excellent alignment over years of use.Its galvanized finish provides exceptional resistance to corrosion, ensuring long-lasting durability and peace of mind.
Key Features
- Italian-made, adjustable weld on hinge
- Weld-on design for maximum stability
- M18 adjustment thread for precise gate alignment
- Strong 28 mm hinge pin for reliable load support
- Smooth, quiet gate movement
- Ideal for medium to heavy swing gates
