Description

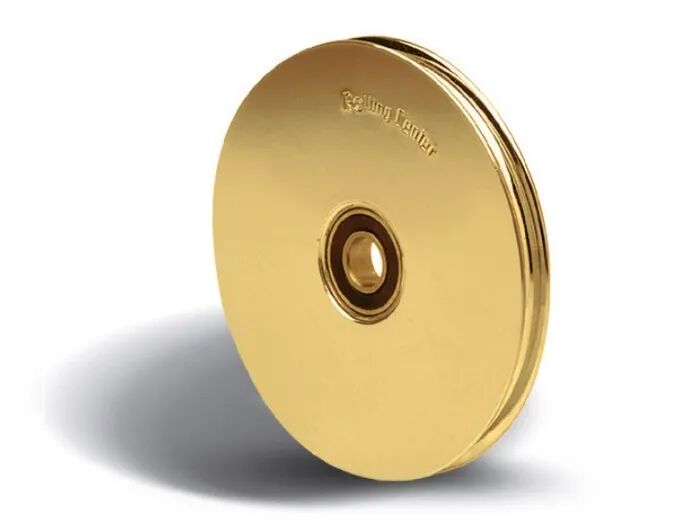

The Rolling Center 100mm Steel Rope Pulley (1013) is designed for applications requiring reliable load handling and consistent rope guidance. Manufactured from high-strength C45 steel, this pulley features a precision-cut round O-groove that ensures accurate rope tracking and reduced wear during operation.
A sealed 6203 2RS bearing is factory-installed to minimise friction and protect internal components from dust and moisture. The galvanised yellow surface treatment provides long-term corrosion resistance, making this pulley suitable for both indoor and outdoor environments.
Tested to withstand up to 1.5 million cycles at full rated load, the 1013 pulley delivers dependable performance in systems subjected to frequent use. Routine lubrication at scheduled intervals helps maintain optimal efficiency and extends service life.
Key Features

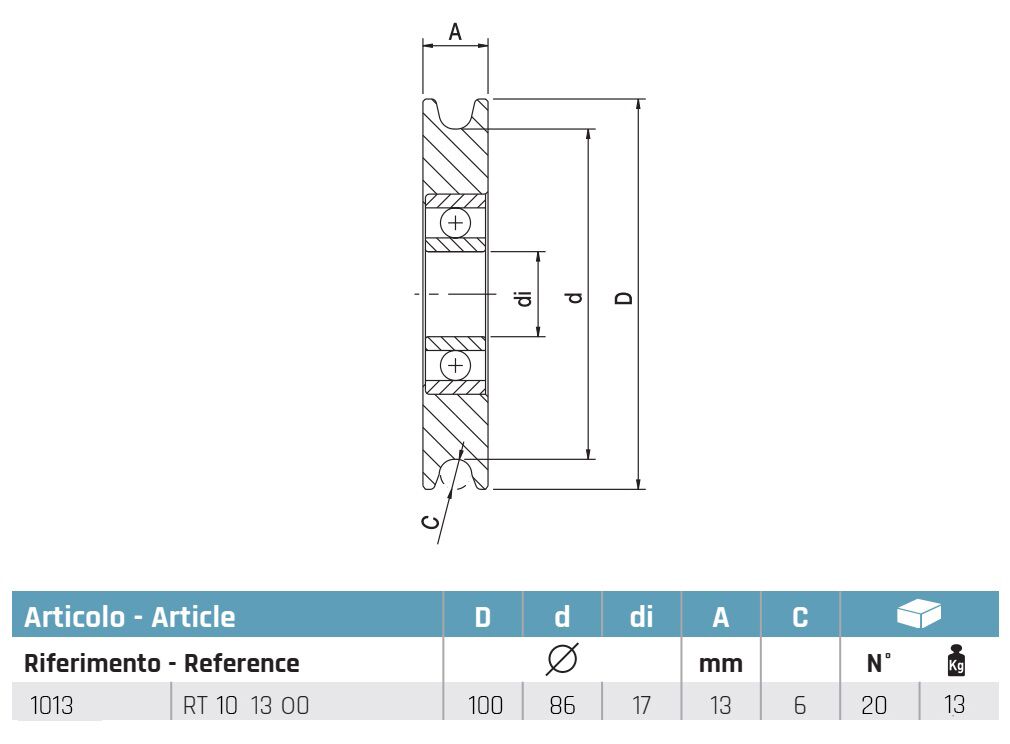

- 100mm diameter steel pulley with round O-groove (6mm)
- Integrated 6203 2RS sealed bearing (17mm internal diameter)
- Maximum working load up to 100kg
- Manufactured from durable C45 carbon steel
- Yellow galvanised finish (13.2µm) for corrosion protection
- Tested to 1.5 million cycles under full load conditions
- Designed for smooth, stable rope and cable operation
- Low maintenance requirements with periodic greasing
