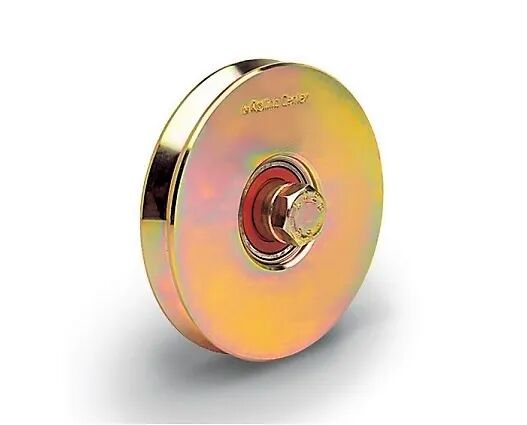

Single Bearing Gate Wheel (518 V)

$19.00 (Ex GST)

Main Stock Code: 518 V

Single Bearing Gate Wheel
• For internal & external sliding doors and gates
• Groove: V (at 96°)
• Diameter: 50 mm
• Width: 18 mm
• Through bolt M10x45 mm
• Bracing at 24 mm
• 1 sealed bearing
• Load capacity of 75 kg
• Material: C45 steel
• Finish: Galvanised yellow 13.2µm
• Tested to 1 million cycles
• Maintenance: Grease every 6 months with waterproof consistency 2 lithium or lithium-aluminium grease

154 in stock

Australia Wide Delivery from our Melbourne Warehouse

Description

When it comes to optimizing the smooth, reliable motion of your sliding systems, our premium Italian single-bearing-gate-wheels are the ultimate choice. This product comes complete with one 50mm wheel, one bolt, two spacers, and one nut, ensuring effortless installation and top-tier performance. Crafted in Italy, these wheels are a testament to precision engineering and durability, designed for compatibility with our angular V-groove sliding track. With a galvanized finish and a remarkable track record of withstanding up to 0.5 million revolutions at full load capacity, these wheels are the pinnacle of quality and reliability.

Additional information

Weight 0.23 kg
Dimensions 5 × 2.4 × 5 cm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

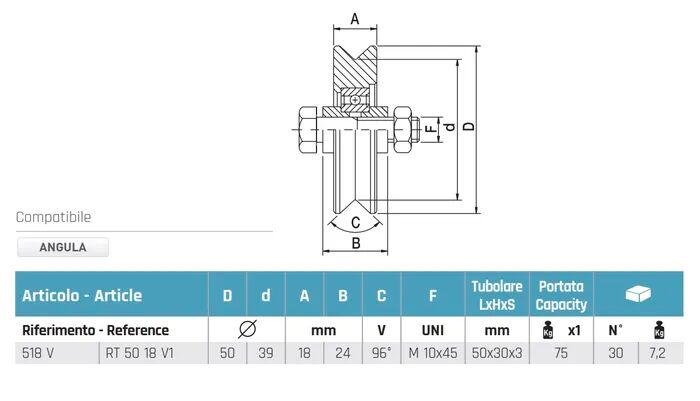

Spec Sheet

‘V’ GROOVE SINGLE BEARING SLIDING GATE WHEEL 50MM (518 V)

All Product Codes: 518 V, 518V, 518-V
