Description

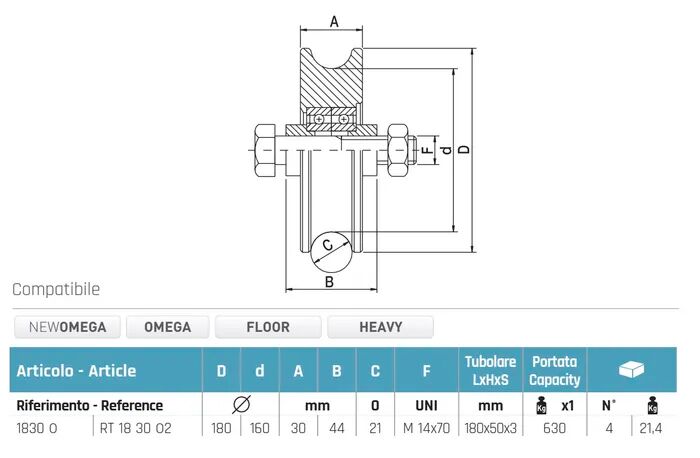

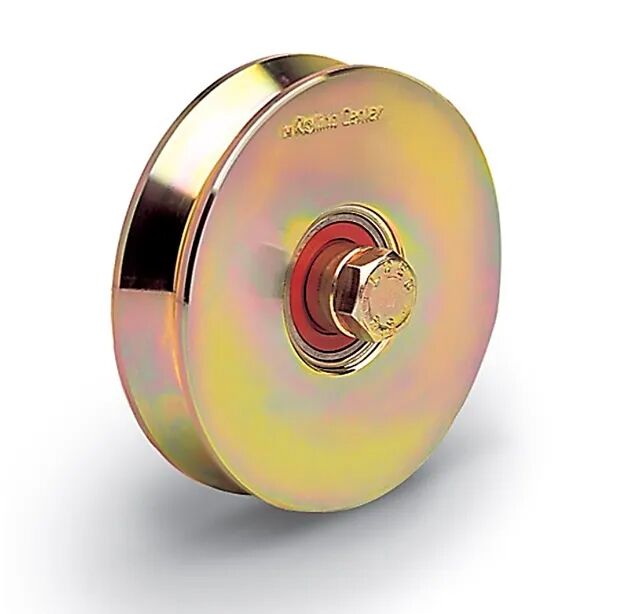

The 180 mm Double Bearing Sliding Gate Wheel is a premium Italian-manufactured component designed for very heavy sliding gate installations where strength, stability, and service life are critical. With its large diameter and precision-machined O-groove profile, this wheel delivers smooth travel and consistent alignment across long gate runs.
Constructed from high-grade C45 steel and protected with a galvanised coating, the wheel is built to withstand harsh outdoor conditions while maintaining long-term corrosion resistance. Internally, two sealed 6203 2RS bearings ensure low rolling resistance and dependable performance under sustained loads.
Supplied complete with an M14 x 70 mm bolt, spacers, and nut, this bolt-through wheel is designed to mount directly to the underside of the gate frame for straightforward installation. Rigorously tested for up to 2 million cycles at full load, it is ideally suited to demanding commercial and industrial environments where reliability cannot be compromised.
Key Features
•180 mm diameter double bearing sliding gate wheel
•Bolt-through design with M14 x 70 mm fixing hardware supplied
•Dual sealed 6203 2RS precision bearings
•Rated load capacity up to 630 kg per wheel
•O-Groove profile for O-Series track compatibility
•Galvanised finish for enhanced corrosion protection
•Manufactured from high-strength C45 steel
•Tested to withstand up to 2 million cycles at full load
