Description

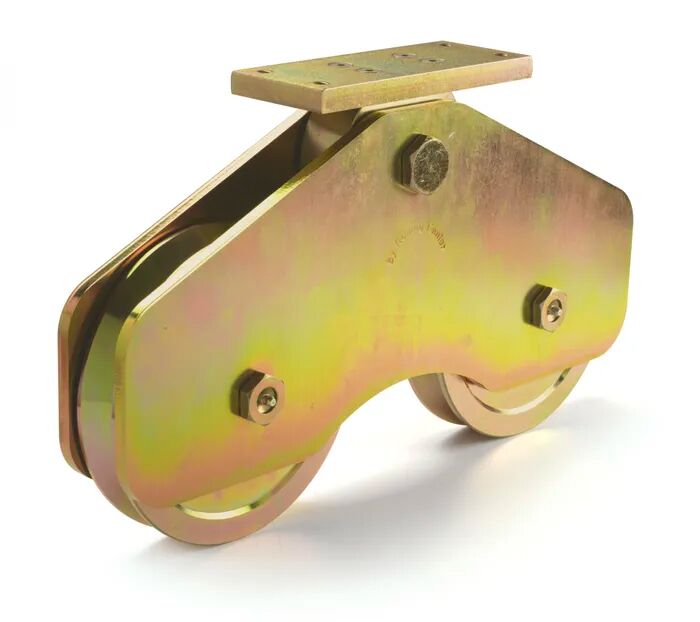

The RBI 160 V 160mm V-Groove Twin Central Rocker Wheel is a heavy-duty gate support solution designed for demanding commercial and industrial sliding gate applications. Manufactured in Italy by Rolling Center, this assembly features dual V-groove steel wheels mounted on a central rocker arm that automatically balances uneven loads across both wheels, reducing track wear and improving gate travel consistency.
Built for underside mounting, the unit incorporates high-strength C45 steel wheels and a reinforced steel support structure, finished with a durable yellow galvanised coating for corrosion resistance in outdoor environments. Precision bearings ensure smooth, controlled movement even under high loads and frequent cycling.
With a rated load capacity of 1000 kg, this twin wheel assembly is ideal for long, heavy gates operating on V-groove (ANGULA) sliding gate tracks, delivering reliable performance, reduced maintenance requirements, and extended operational life.
Key Features
- 160mm Twin V-Groove Wheel Assembly – Designed for precise tracking on V-groove rails
- Central Rocker Arm Design – Automatically equalises load between wheels
- Heavy-Duty Bearing Configuration – Precision bearings for smooth, low-resistance movement
- High Load Rating – Supports up to 1000 kg per assembly
- Underside Gate Mounting – Ideal for concealed, structural installations
- Galvanised Steel Construction – Corrosion-resistant finish for outdoor use
- Italian Engineering – Manufactured to exacting European standards
- Long Service Life – Tested to withstand up to 2 million cycles
