Heavy Duty 3 Wing Hinge

$195.00 (Ex GST)

Main Stock Code: 139 P

Large weld-on steel hinge with 3 shortened wings. Load capacity of 400kgs. Designed for heavy gates & doors. Manufactured using 2 x SKF 20x35x10 HR bearings. Unbreakable shaft with 20 mm diameter. Complete with grease nipple for periodic maintenance.

38 in stock

Australia Wide Delivery from our Melbourne Warehouse

SKU: 139 P Categories: ,

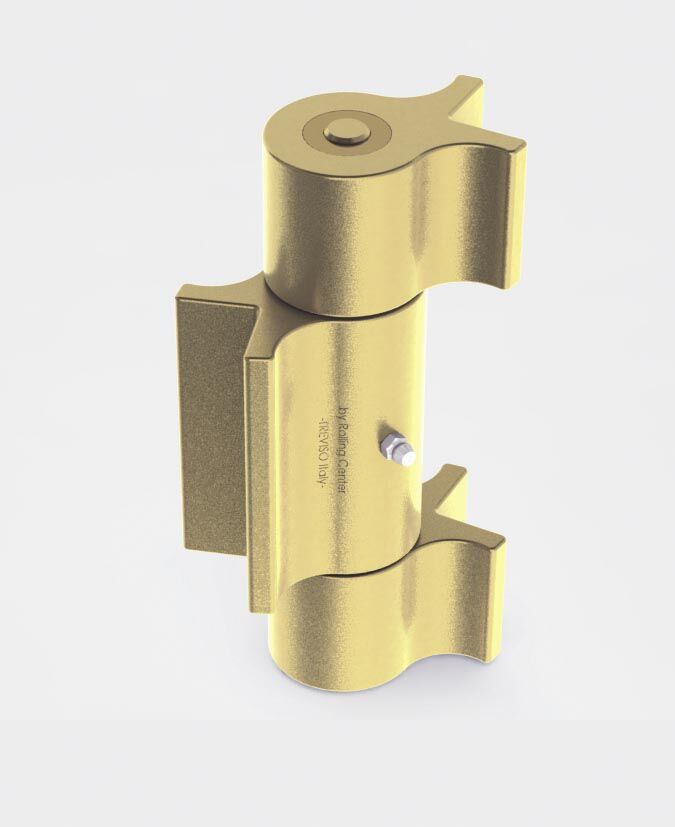

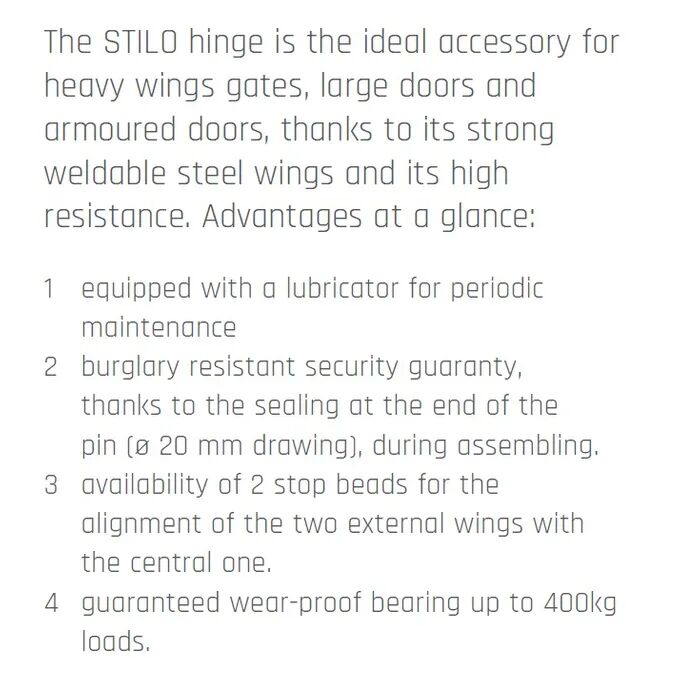

The STILO hinge is the ideal accessory for the construction of heavy leaf gates, large doors or armoured doors. Made entirely of weldable steel with ø 20 pin, bearings and bushings, with grease pin for periodic maintenance. This hinge is guaranteed to withstand loads up to 400kg.
Other features include:

1 Anti-burglary, rip-proof and anti-slip, thanks to the riveted pin and the joint between the wings
2 Detachable, separable – when simplicity is a must
3 With two adjustable wings, in order to simplify installation and always ensure a perfect load on the bearings.

Additional information

Weight 3.03 kg
Dimensions 6.6 × 20.8 × 8.65 cm


There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

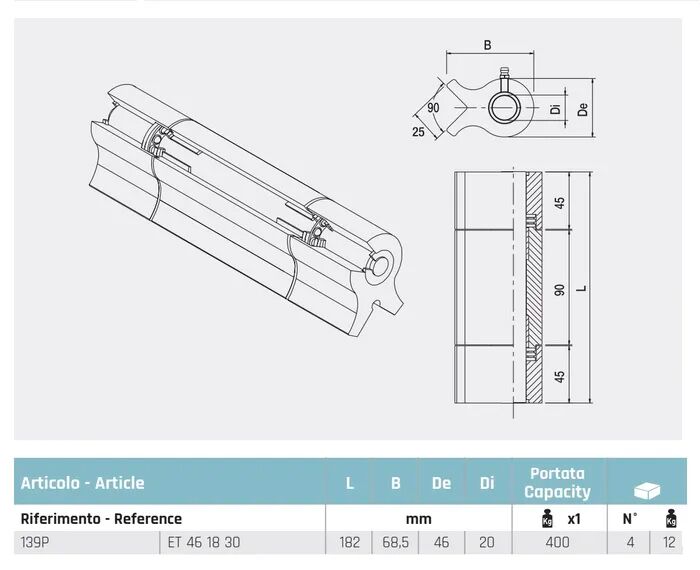

Spec Sheet

All Product Codes: 139 P, 139-P, 139P
