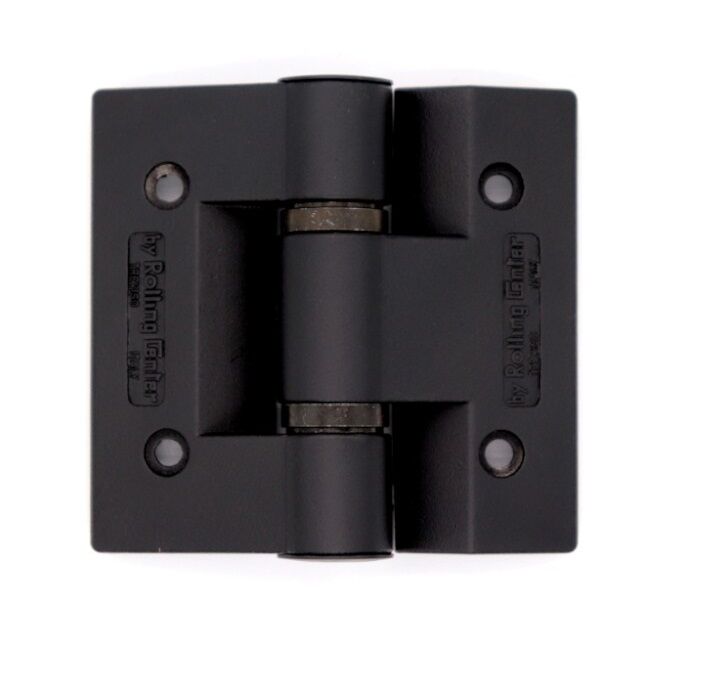

Aluminium Door Hinge (CRN 1 A Piana)

$127.90 (Ex GST)

Main Stock Code: CRN 1 A PIANA

• Aluminium Door Hinge
• Used for suspended swinging doors & gates (internally and externally)
• Dimension: 140×148 mm
• Thickness: 12 mm
• Axle diameter: 20 mm
• Load capacity: 150 kg per hinge
• Attachment: Align hinge for mounting. Use self-tapping screws or rivets on face plate of the hinge to secure
• Material: Wings: Aluminium EN AB-47100 – Pin: Steel S235JR – Bearings:20x32x8.75 Steel 11SM2Pb37
• Maintenance: Check strengthening every 6 months

28 in stock

Australia Wide Delivery from our Melbourne Warehouse

SKU: CRN 1 A PIANA Categories: ,

Description

Add a touch of elegance to your gate or door with our Aluminium Door Hinge, the CRN 1 A Piana. Crafted to impress, this hinge features an eye-catching two-sided flat central design in black varnished aluminium. With a sturdy pin diameter of Ø 20 and two center-line wings, it offers exceptional stability and support. Built to handle heavy loads, this hinge boasts an impressive load-bearing capacity of 150kgs. Measuring 12mm in thickness and with dimensions of 140 x 148mm, it’s engineered to meet your most demanding needs, making it an ideal choice for heavy internal and external folding doors and gates.

Additional information

Weight 1.07 kg
Dimensions 15 × 3.5 × 14 cm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

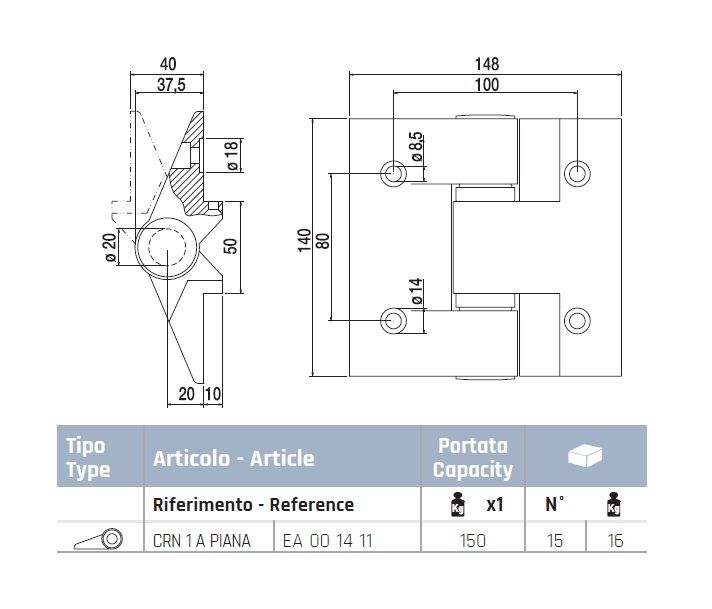

Spec Sheet

ALUMINIUM SWINGING GATE HINGE

All Product Codes: CRN 1 A PIANA, CRN-1-A-PIANA, CRN1APIANA
