Description

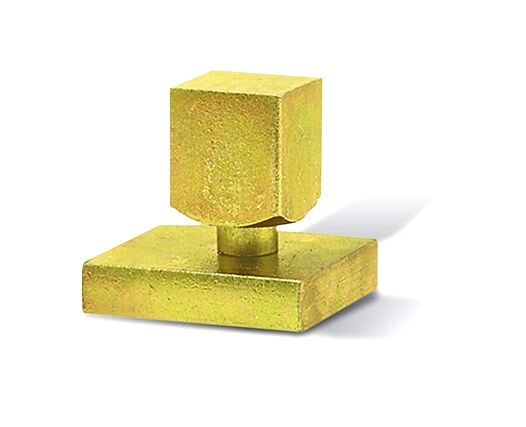

The Lower Plate and Pin Hinge 35 is an Italian-made, galvanized lower pivot hinge designed for domestic and light-duty swing gate applications. Featuring a solid square lower plate with a weldable steel pin, this hinge provides dependable load-bearing support and smooth gate movement.

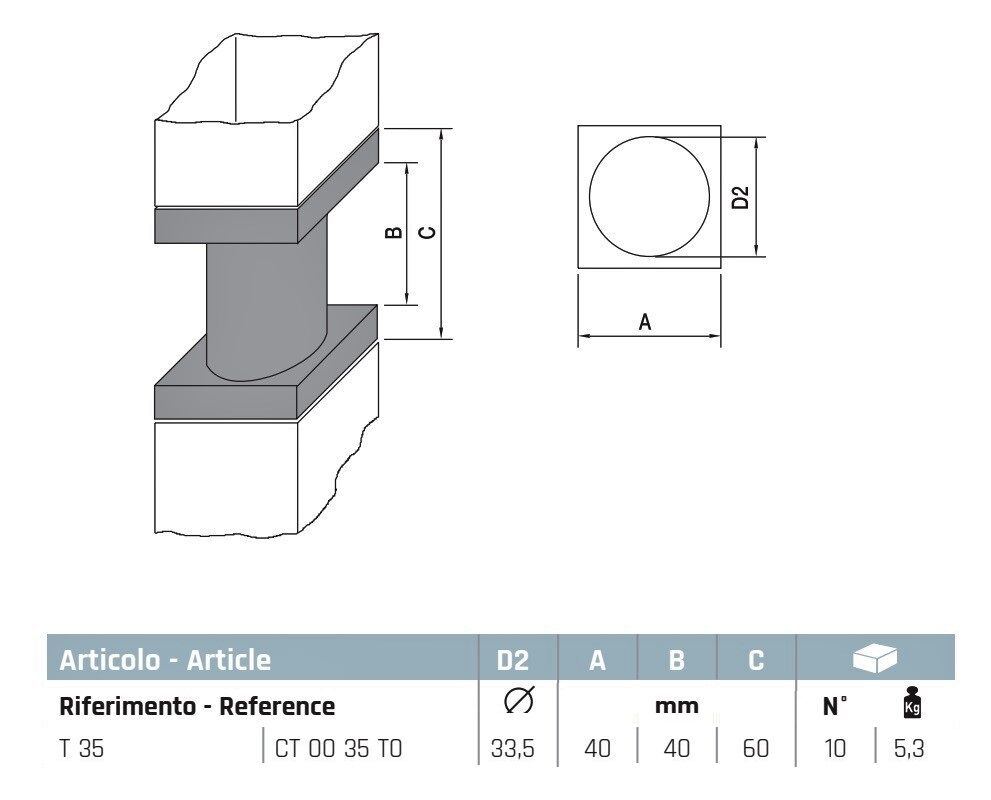

Manufactured with a 35 × 35 mm pin and a 70 × 60 × 15 mm steel base, it allows for a 90° gate opening and supports up to 160 kg per hinge. The galvanized yellow finish delivers excellent corrosion resistance, ensuring long service life even in outdoor environments.
Engineered for durability, the hinge has been tested to withstand up to 1 million revolutions under normal environmental conditions. Routine maintenance is minimal, with a recommended strength check every six months to ensure ongoing performance and safety.
Key Features
•Italian-made lower plate and pin hinge
•Galvanized solid steel construction
•Bottom-mounted, load-bearing design
•Weight capacity: up to 160 kg per hinge
•Pin size: 35 × 35 mm
•Base plate size: 70 × 60 × 15 mm
•Allows 90° swing gate opening
•Corrosion-resistant galvanized yellow finish
•Tested to 1 million revolutions in normal conditions
•Maintenance: strength check recommended every 6 months
