Description

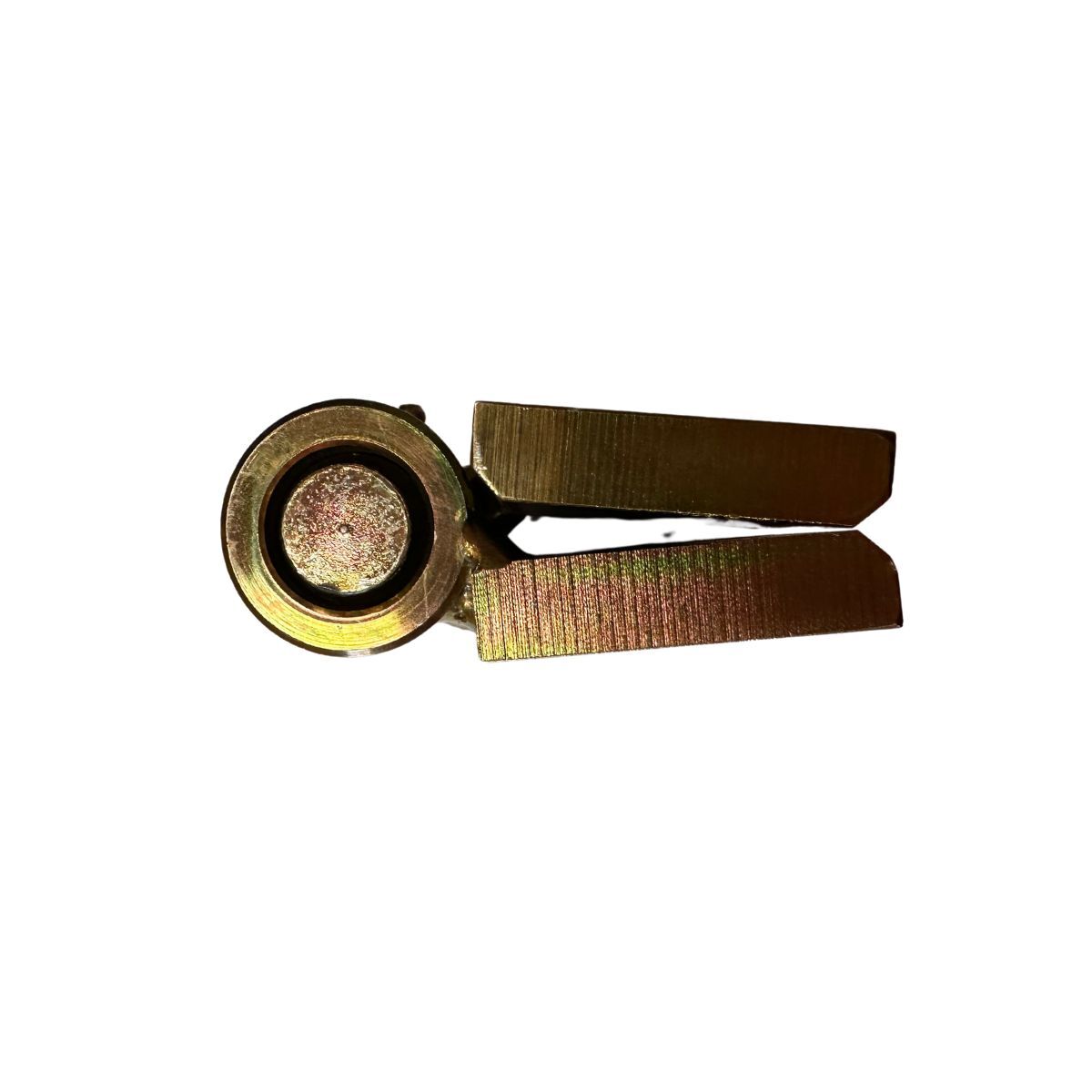

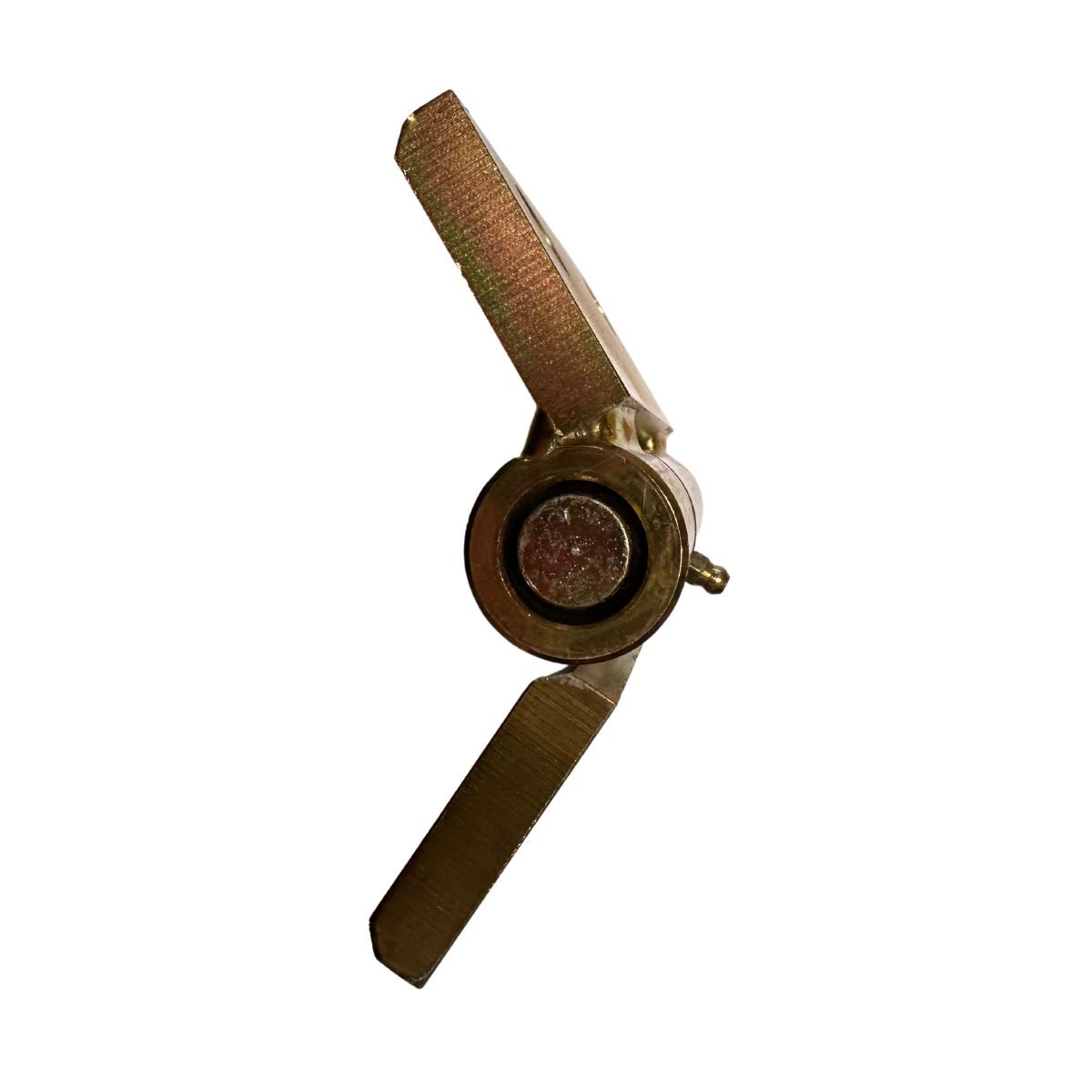

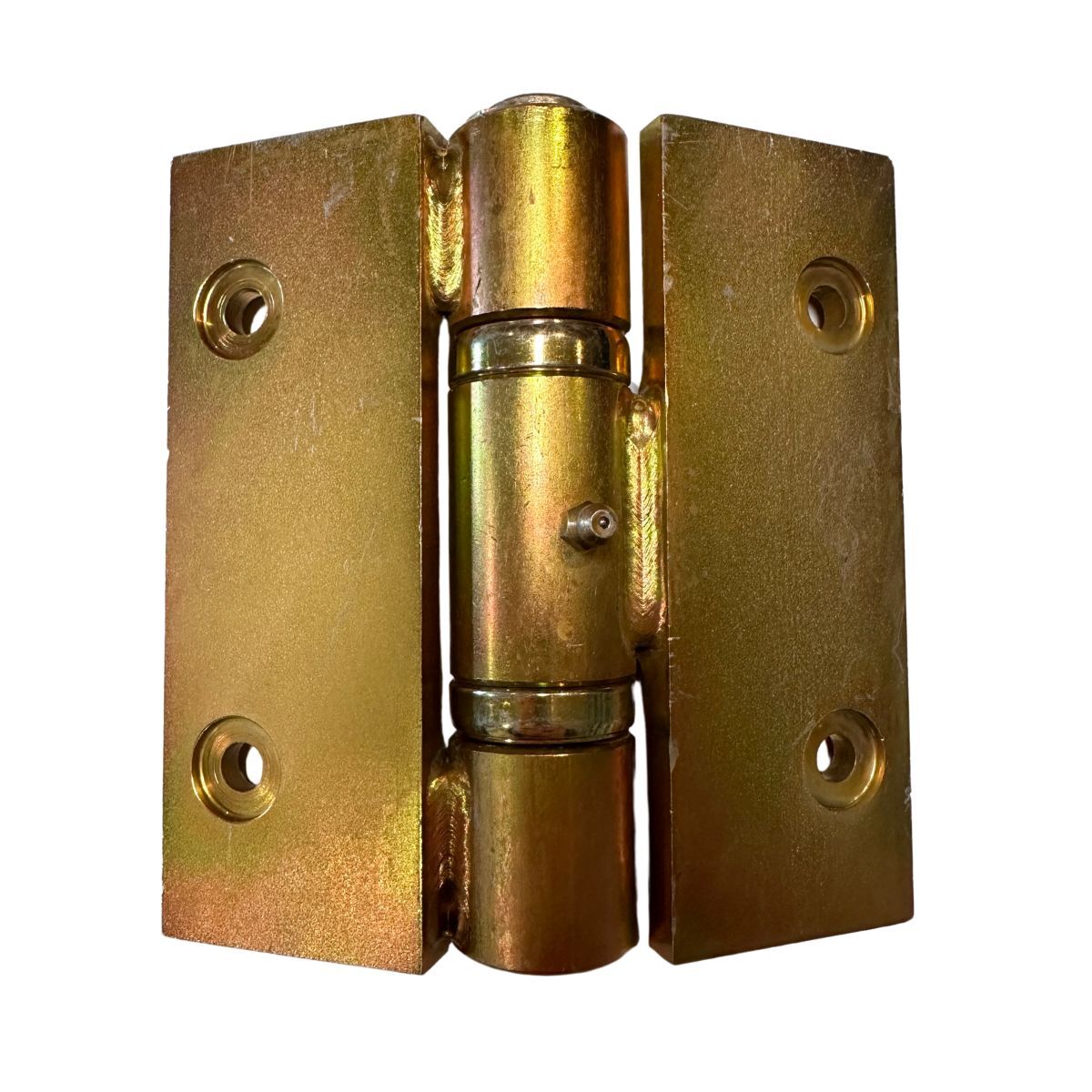

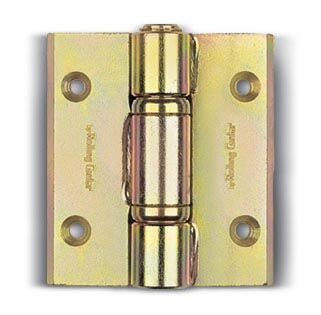

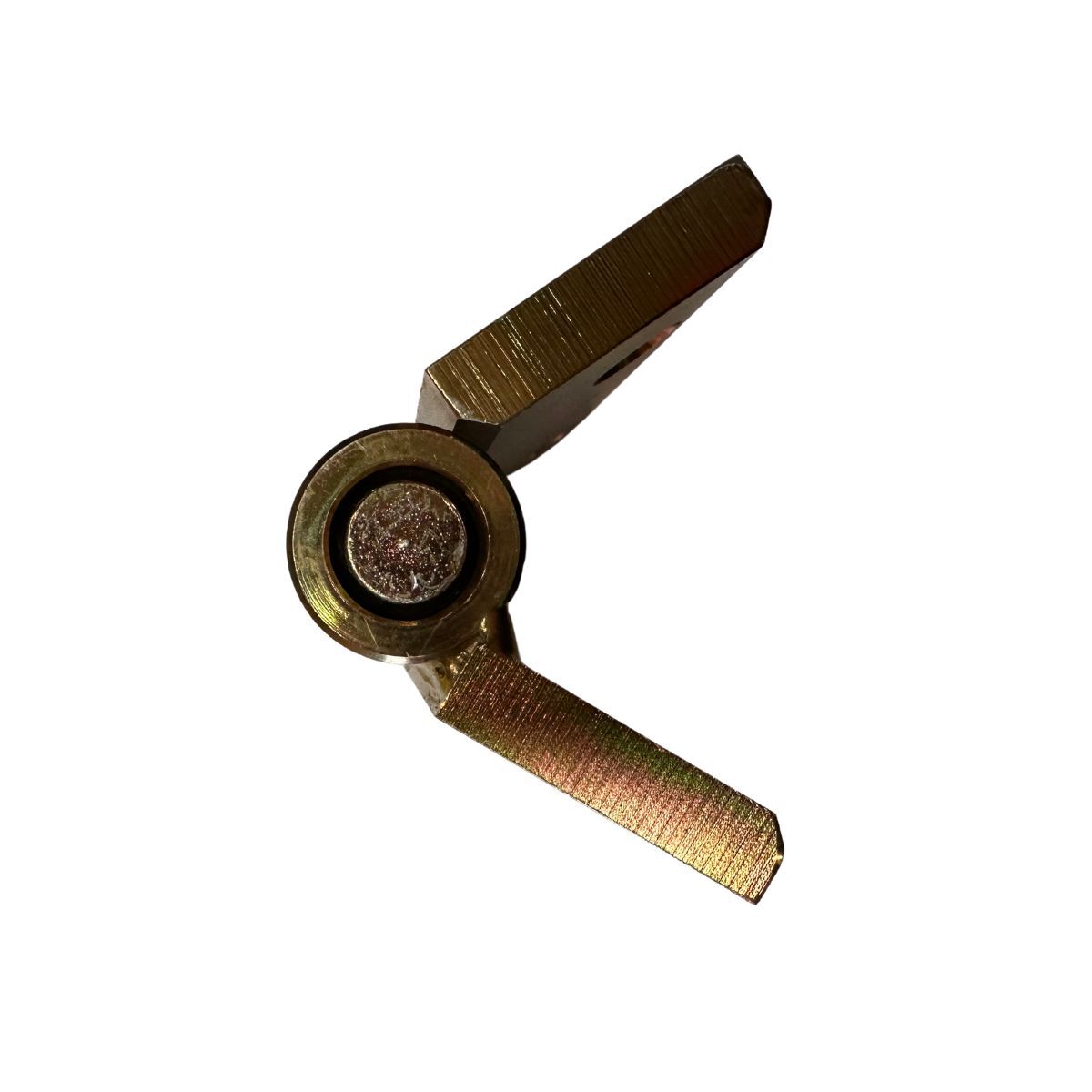

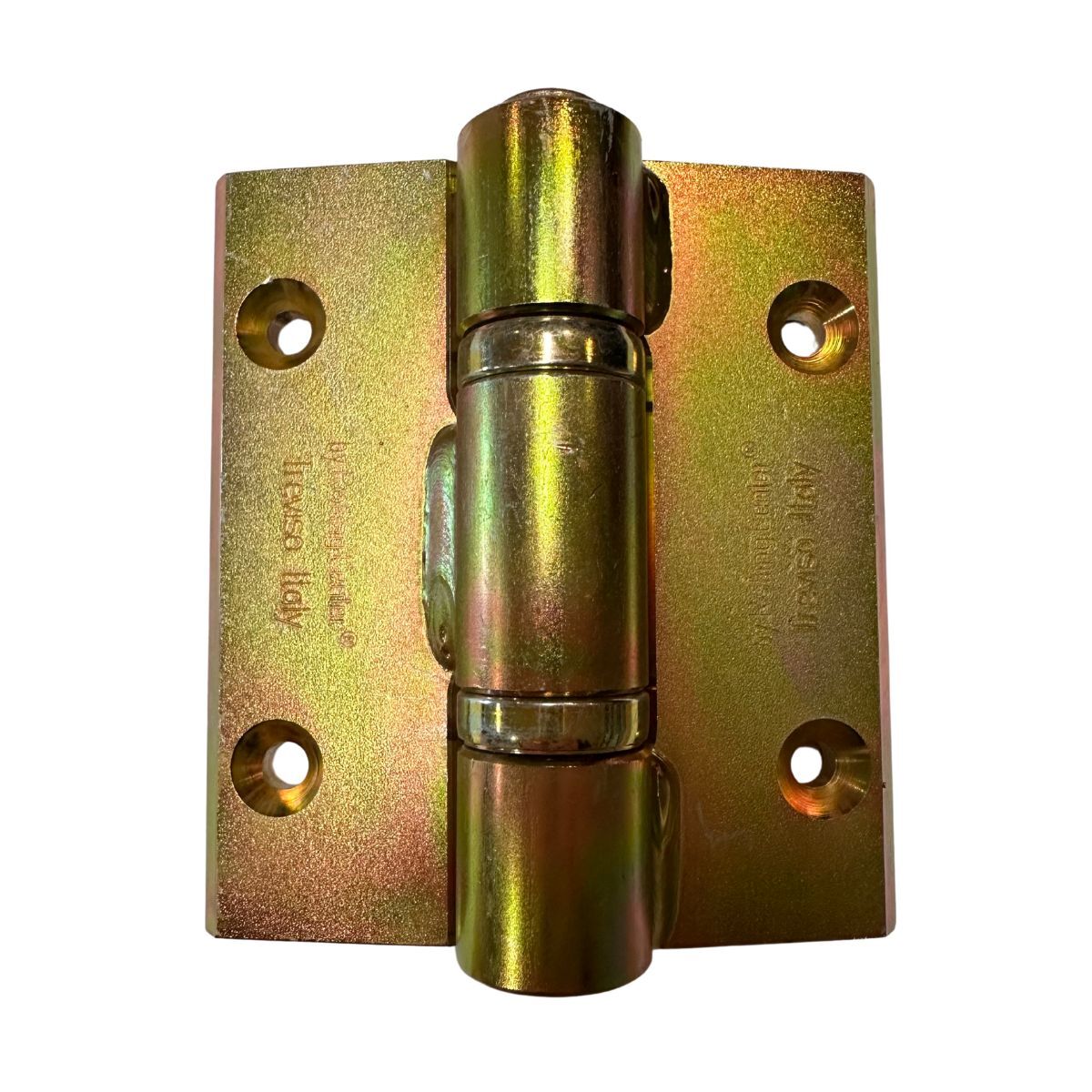

The CRN 1 PIANA is a high-quality, Italian-engineered industrial butt hinge designed for demanding folding door and swing gate applications. Featuring two centre-line wings and a precision internal Ø20 pin, this hinge sits flush to minimise the gap between the gate and post, ensuring a clean and secure installation.
Built with durability in mind, the hinge is equipped with bearings for smooth, reliable movement and is coated in yellow galvanised zinc for superior corrosion resistance. Each hinge supports up to 200 kg, making it suitable for heavy-duty installations.
For best performance, we recommend securing the hinge with rivets or fastening rings on the fixing side. A built-in lubricator pin supports long-term hinge health, and regular strengthening checks every six months help maintain optimal operation.
Tested to withstand up to 0.20 million revolutions in normal environmental conditions, the CRN 1 PIANA delivers long-lasting reliability for industrial and commercial use.
Key Features
- Italian-made industrial flush butt hinge with bearings
- Two centre-line wings and internal Ø20 pin
- Flush-mounted design minimises gap between gate and post
- 200-kg load capacity per hinge
- Yellow-galvanised finish for corrosion resistance
- Includes lubricator pin for extended hinge life
- Recommended installation with rivets or fastening rings
- Strengthening checks advised every 6 months
- Tested to withstand up to 0.20 million revolutions
