Description

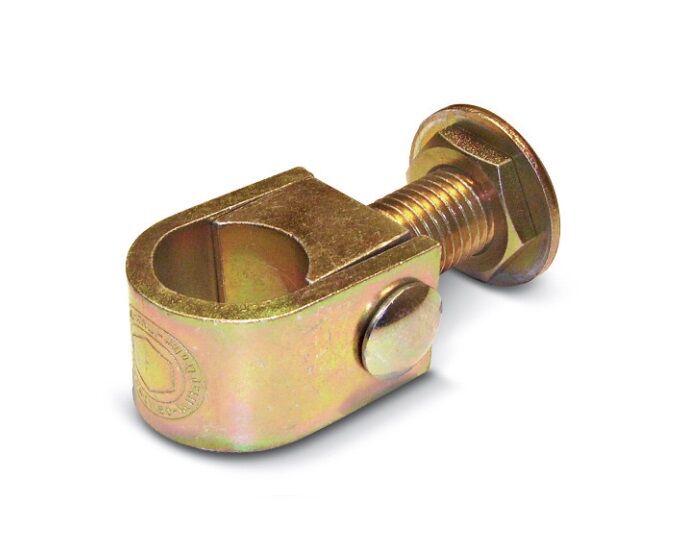

Our adjustable wrap-around gate hinge, also known as a collar hinge, is the perfect choice for fabricators crafting heavy wrought iron swing gates using round tube. This hinge provides a long-term solution.

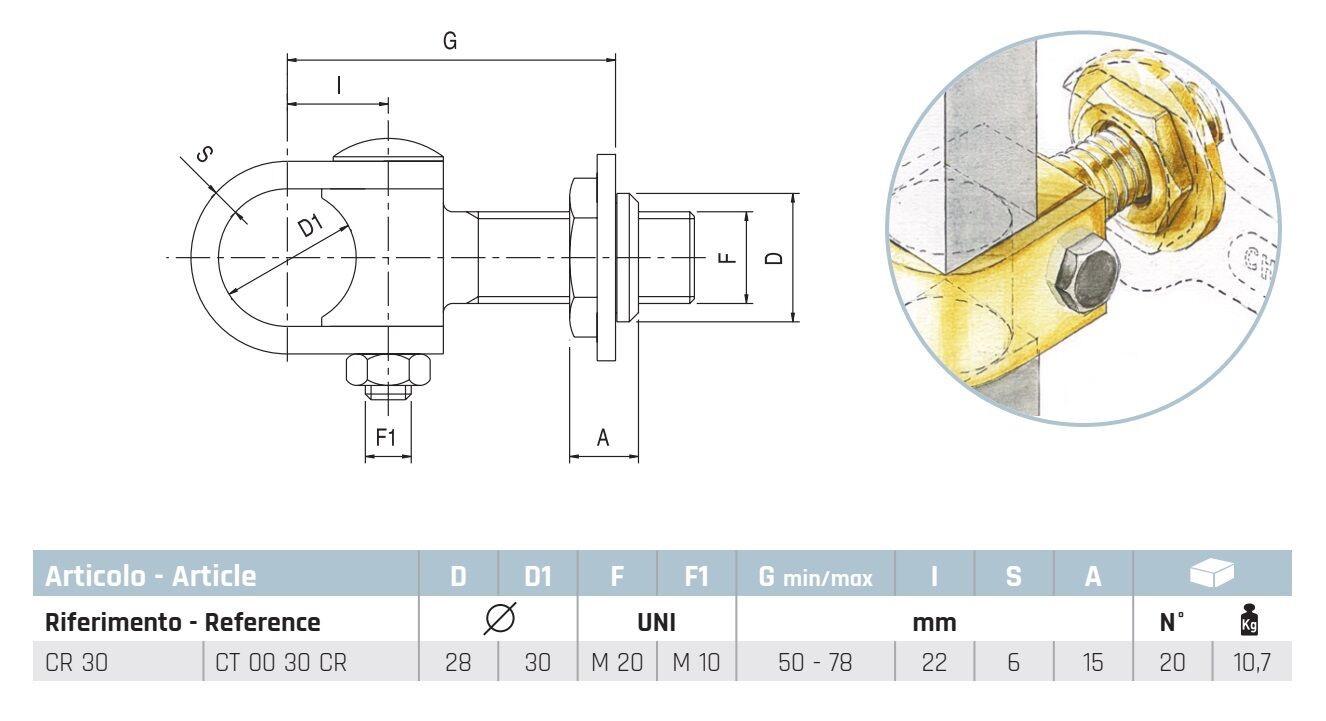

The adjustable wrap-around gate hinge features:

• 30mm internal diameter, designed to fit 30x30mm steel sections
• M20 thread with an adjustable range between 44 – 68mm
• Load rating of 110kg per hinge, offering exceptional strength and stability

Manufactured from Italian A37 steel and galvanized for maximum protection, these hinges have been rigorously tested up to 1 million cycles. The adjustable nut feature allows for easy modifications when welded in place.

For added convenience, the adjustable flower hinge mounting plate PR 20 F is available for gates installed on wooden posts. To maintain optimal performance, we recommend checking the operating clearances every 12 months.

Manufactured from Italian A37 steel and galvanized for maximum protection, these hinges have been rigorously tested up to 1 million cycles. The adjustable nut feature allows for easy modifications when welded in place.

For added convenience, the adjustable flower hinge mounting plate PR 20 F is available for gates installed on wooden posts. To maintain optimal performance, we recommend checking the operating clearances every 12 months.
